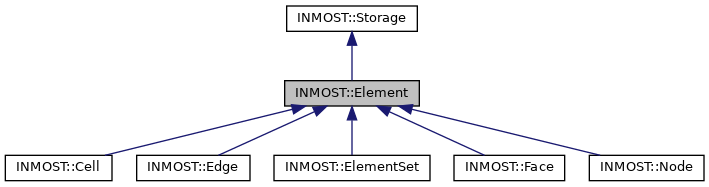

Inheritance diagram for INMOST::Element:

[legend]

Collaboration diagram for INMOST::Element:

Public Types
typedef INMOST_DATA_BULK_TYPE	GeometricType

typedef INMOST_DATA_BULK_TYPE	Status

typedef inner_reference_array	adj_type

typedef adj_type::iterator	adj_iterator

typedef adj_type::const_iterator	const_adj_iterator

typedef adj_type::reverse_iterator	adj_reverse_iterator

typedef adj_type::const_reverse_iterator	const_adj_reverse_iterator

Public Types inherited from INMOST::Storage
typedef INMOST_DATA_REAL_TYPE	real
	Storage type for representing real values.

typedef INMOST_DATA_INTEGER_TYPE	integer
	Storage type for representing integer values.

typedef INMOST_DATA_BULK_TYPE	bulk
	Storage type for representing one byte of abstract data.

typedef INMOST_DATA_ENUM_TYPE	enumerator
	type for representing unsigned integer values.

typedef HandleType	reference
	Storage type for representing references to Element.

typedef RemoteHandleType	remote_reference
	Storage type for representing references to Element in another Mesh.

typedef shell< real >	real_array
	Storage type for representing arrays of real values.

typedef shell< integer >	integer_array
	Storage type for representing arrays of integer values.

typedef shell< bulk >	bulk_array
	Storage type for representing abstract data as a series of bytes.

typedef variable	var
	Storage type for representing real value with vector of variations.

typedef shell< variable >	var_array
	Storage type for representing array of values with vectors of variations.

Public Member Functions
	Element (Mesh *m, HandleType h)

	Element (Mesh m, HandleType h)

	Element (const Element &other)

Element &	operator= (Element const &other)

Element *	operator-> ()

const Element *	operator-> () const

Element &	self ()

const Element &	self () const

virtual enumerator	nbAdjElements (ElementType etype) const
	Retrieve number of adjacent elements. More...

virtual ElementArray< Element >	getAdjElements (ElementType etype) const
	Retrieve unordered array of adjacent elements. More...

virtual enumerator	nbAdjElements (ElementType etype, MarkerType mask, bool invert_mask=false) const
	Retrieve number of adjacent elements with marker. More...

virtual ElementArray< Element >	getAdjElements (ElementType etype, MarkerType mask, bool invert_mask=false) const
	Retrieve unordered array of adjacent elements with marker. More...

ElementArray< Element >	BridgeAdjacencies (ElementType Bridge, ElementType Dest, MarkerType bridge_mask=0, bool bridge_invert=false, MarkerType target_mask=0, bool target_invert=false) const

ElementArray< Node >	BridgeAdjacencies2Node (ElementType Bridge, MarkerType bridge_mask=0, bool bridge_invert=false, MarkerType target_mask=0, bool target_invert=false) const

ElementArray< Edge >	BridgeAdjacencies2Edge (ElementType Bridge, MarkerType bridge_mask=0, bool bridge_invert=false, MarkerType target_mask=0, bool target_invert=false) const

ElementArray< Face >	BridgeAdjacencies2Face (ElementType Bridge, MarkerType bridge_mask=0, bool bridge_invert=false, MarkerType target_mask=0, bool target_invert=false) const

ElementArray< Cell >	BridgeAdjacencies2Cell (ElementType Bridge, MarkerType bridge_mask=0, bool bridge_invert=false, MarkerType target_mask=0, bool target_invert=false) const

virtual ElementArray< Node >	getNodes () const
	Retrieve all the nodes of the element. More...

virtual ElementArray< Edge >	getEdges () const
	Retrieve all the edges of the element. More...

virtual ElementArray< Face >	getFaces () const
	Retrieve all the faces of the element. More...

virtual ElementArray< Cell >	getCells () const
	Return all the cells of the element. More...

virtual ElementArray< Node >	getNodes (MarkerType mask, bool invert_mask=false) const

virtual ElementArray< Edge >	getEdges (MarkerType mask, bool invert_mask=false) const

virtual ElementArray< Face >	getFaces (MarkerType mask, bool invert_mask=false) const

virtual ElementArray< Cell >	getCells (MarkerType mask, bool invert_mask=false) const

GeometricType	GetGeometricType () const

unsigned int	GetElementDimension () const

Status	GetStatus () const

void	SetStatus (Status status) const

Storage::integer &	GlobalID () const

bool	CheckElementConnectivity () const

void	PrintElementConnectivity () const

void	CastRay (const real pos, const real dir, std::map< HandleType, real > &hits) const

void	ComputeGeometricType () const

void	Centroid (real *cnt) const

void	Barycenter (real *cnt) const

Storage::real	Mean (const MeanFunc &f, real time) const

Storage::real	Mean (real(func)(real x, real t), real time) const

bool	Boundary () const
	Determine that the element is on the boundary. More...

bool	Planarity () const

bool	Hide () const
	If the function returns true then element was hidden, works only inside BeginModification and EndModification, on EndModification all Hidden elements are deleted. More...

bool	Show () const
	If the function returns true then element was recovered from hidden state, works only inside BeginModification and EndModification. More...

bool	Delete ()
	Remove element from mesh. More...

bool	Hidden () const

bool	New () const

void	Disconnect (bool delete_upper_adjacent) const

void	Disconnect (const HandleType *adjacent, INMOST_DATA_ENUM_TYPE num) const
	Disconnect element. More...

void	Connect (const HandleType *adjacent, INMOST_DATA_ENUM_TYPE num) const
	Connects lower adjacencies to current element. More...

void	SendTo (std::set< Storage::integer > &procs) const
	Update geometric data for element, calls RecomputeGeometricData from Mesh. More...

void	SendTo (std::vector< Storage::integer > &procs) const

void	SendTo (Storage::integer_array procs) const

Public Member Functions inherited from INMOST::Storage
	Storage (const Storage &other)

	Storage (Mesh *mesh, HandleType handle)

	Storage (Mesh mesh, HandleType handle)
	This constructor allows for remote handle modification.

Storage &	operator= (Storage const &other)
	If there is a link to handle provided (automatically by ElementArray and reference_array), then remote handle value will be modified.

__INLINE bool	operator< (const Storage &other) const

__INLINE bool	operator> (const Storage &other) const

__INLINE bool	operator<= (const Storage &other) const

__INLINE bool	operator>= (const Storage &other) const

__INLINE bool	operator== (const Storage &other) const

__INLINE bool	operator!= (const Storage &other) const

__INLINE Storage *	operator-> ()

__INLINE const Storage *	operator-> () const

__INLINE Storage &	self ()

__INLINE const Storage &	self () const

__INLINE real &	Real (const Tag &tag) const
	Retrieve real value associated with Tag. More...

__INLINE integer &	Integer (const Tag &tag) const
	Retrieve integer value associated with Tag. More...

__INLINE bulk &	Bulk (const Tag &tag) const
	Retrieve one byte of abstract data associated with Tag. More...

__INLINE reference &	Reference (const Tag &tag) const
	Retrieve Element reference associated with Tag. More...

__INLINE remote_reference &	RemoteReference (const Tag &tag) const
	Retrieve remote Element reference associated with Tag. More...

__INLINE real_array	RealArray (const Tag &tag) const
	Retrieve array of real values associated with Tag. More...

__INLINE integer_array	IntegerArray (const Tag &tag) const
	Retrieve array of integer values associated with Tag. More...

__INLINE bulk_array	BulkArray (const Tag &tag) const
	Retrieve abstract data associated with Tag as a series of bytes. More...

__INLINE reference_array	ReferenceArray (const Tag &tag) const
	Retrieve array of Element references associated with Tag. More...

__INLINE remote_reference_array	RemoteReferenceArray (const Tag &tag) const
	Retrieve array of Element references associated with Tag. More...

__INLINE real_array	RealArrayDF (const Tag &tag) const

__INLINE integer_array	IntegerArrayDF (const Tag &tag) const

__INLINE bulk_array	BulkArrayDF (const Tag &tag) const

__INLINE reference_array	ReferenceArrayDF (const Tag &tag) const

__INLINE remote_reference_array	RemoteReferenceArrayDF (const Tag &tag) const

__INLINE real &	RealDF (const Tag &tag) const

__INLINE integer &	IntegerDF (const Tag &tag) const

__INLINE bulk &	BulkDF (const Tag &tag) const

__INLINE reference &	ReferenceDF (const Tag &tag) const

__INLINE remote_reference &	RemoteReferenceDF (const Tag &tag) const

__INLINE real_array	RealArrayDV (const Tag &tag) const

__INLINE integer_array	IntegerArrayDV (const Tag &tag) const

__INLINE bulk_array	BulkArrayDV (const Tag &tag) const

__INLINE reference_array	ReferenceArrayDV (const Tag &tag) const

__INLINE remote_reference_array	RemoteReferenceArrayDV (const Tag &tag) const

__INLINE real &	RealDV (const Tag &tag) const

__INLINE integer &	IntegerDV (const Tag &tag) const

__INLINE bulk &	BulkDV (const Tag &tag) const

__INLINE reference &	ReferenceDV (const Tag &tag) const

__INLINE remote_reference &	RemoteReferenceDV (const Tag &tag) const

__INLINE var &	Variable (const Tag &tag) const
	Retrieve variable reference associated with Tag.

__INLINE var &	VariableDF (const Tag &tag) const

__INLINE var &	VariableDV (const Tag &tag) const

__INLINE var_array	VariableArray (const Tag &tag) const
	Retrieve array of variables associated with Tag.

__INLINE var_array	VariableArrayDF (const Tag &tag) const

__INLINE var_array	VariableArrayDV (const Tag &tag) const

__INLINE INMOST_DATA_ENUM_TYPE	GetDataSize (const Tag &tag) const
	Return the data length associated with Tag. More...

__INLINE INMOST_DATA_ENUM_TYPE	GetDataCapacity (const Tag &tag) const
	Return the size of the structure required to represent the data on current element. More...

__INLINE void	SetDataSize (const Tag &tag, INMOST_DATA_ENUM_TYPE new_size) const
	Set the length of data associated with Tag. More...

__INLINE void	GetData (const Tag &tag, INMOST_DATA_ENUM_TYPE shift, INMOST_DATA_ENUM_TYPE size, void *data) const
	Extract part of the data associated with Tag. More...

__INLINE void	SetData (const Tag &tag, INMOST_DATA_ENUM_TYPE shift, INMOST_DATA_ENUM_TYPE size, const void *data) const

__INLINE void	DelData (const Tag &tag) const

__INLINE bool	DelSparseData (const Tag &tag) const
	Deallocates space allocated for sparse data, frees variable array if necessary.

__INLINE void	DelDenseData (const Tag &tag) const
	Frees variable array or fills field with zeroes.

__INLINE bool	HaveData (const Tag &tag) const
	Check if any data is associated with Tag.

__INLINE ElementType	GetElementType () const

__INLINE integer	GetElementNum () const

__INLINE void	SetMarker (MarkerType n) const

__INLINE bool	GetMarker (MarkerType n) const

__INLINE void	RemMarker (MarkerType n) const

__INLINE void	SetPrivateMarker (MarkerType n) const

__INLINE bool	GetPrivateMarker (MarkerType n) const

__INLINE void	RemPrivateMarker (MarkerType n) const

__INLINE void	ClearMarkerSpace () const

__INLINE void	GetMarkerSpace (bulk copy[MarkerFields]) const

__INLINE void	SetMarkerSpace (bulk source[MarkerFields]) const

__INLINE integer	LocalID () const

__INLINE integer	DataLocalID () const
	This number is guaranteed to be between 0 and Mesh::NumberOf(type of element) after Mesh::ReorderEmpty.

__INLINE bool	isValid () const

__INLINE Mesh *	GetMeshLink () const

__INLINE HandleType	GetHandle () const

__INLINE Element	getAsElement () const

__INLINE Node	getAsNode () const

__INLINE Edge	getAsEdge () const

__INLINE Face	getAsFace () const

__INLINE Cell	getAsCell () const

__INLINE ElementSet	getAsSet () const

Static Public Member Functions
static const char *	GeometricTypeName (GeometricType t)

static integer	GetGeometricDimension (GeometricType m_type)

static const char *	StatusName (Status s)

static bool	CheckConnectivity (Mesh *m)

Static Public Attributes
static const GeometricType	Unset = 0

static const GeometricType	Vertex = 1

static const GeometricType	Line = 2

static const GeometricType	MultiLine = 3

static const GeometricType	Tri = 4

static const GeometricType	Quad = 5

static const GeometricType	Polygon = 6

static const GeometricType	MultiPolygon = 7

static const GeometricType	Tet = 8

static const GeometricType	Hex = 9

static const GeometricType	Prism = 10

static const GeometricType	Pyramid = 11

static const GeometricType	Polyhedron = 12

static const GeometricType	Set = 253

static const GeometricType	MeshPart = 254

static const GeometricType	MaxType = 255

static const Status	Owned = 1

static const Status	Shared = 2

static const Status	Ghost = 4

static const Status	Any = 0

Protected Member Functions
void	SetGeometricType (GeometricType t)

Additional Inherited Members
Protected Attributes inherited from INMOST::Storage
HandleType	handle

HandleType *	handle_link

Detailed Description

Definition at line 289 of file inmost_mesh.h.

Member Function Documentation

◆ Boundary()

bool INMOST::Element::Boundary ( ) const

Determine that the element is on the boundary.

Warning: This function does not involve communication for distributed mesh and works only for local partition of the mesh. It cannot correctly determine boundary elements of the global mesh. For this purpose you should use Mesh::MarkBoundaryFaces

Returns: True if the element is on the boundary, otherwise false.

See also: Mesh::MarkBoundaryFaces

◆ Connect()

void INMOST::Element::Connect	(	const HandleType *	adjacent,
		INMOST_DATA_ENUM_TYPE	num
	)		const

Connects lower adjacencies to current element.

Geometric data and cell nodes are updated automatically.

Todo:

Asserts in this function should be replaced by Topography checks.
This function should be used for construction of elements instead of current implementation.
Should correctly account for order of edges (may be implemented through CheckEdgeOrder, FixEdgeOrder).

◆ Delete()

bool INMOST::Element::Delete ( )

Remove element from mesh.

If you call this function inside modification phase, see Mesh::BeginModification and Mesh::EndModification, and the element was not created during modification phase (not marked as Element::New), then the element will not be actually destroyed but hidden. You can restore all the hidden elements by using Mesh::ToggleModification.

Warning: This function will not resolve an hierarchical structure of ElementSet, use ElementSet::DeleteSet instead.

Returns: Returns true if the element was actually destroyed. Returns false if the element was hidden.

◆ Disconnect()

void INMOST::Element::Disconnect	(	const HandleType *	adjacent,
		INMOST_DATA_ENUM_TYPE	num
	)		const

Disconnect element.

Disconnects nodes from this edge, edges from this face, faces from this cell, cannot disconnect cells from this node;
Disconnects edges from this node, faces from this edge, cells from this face, cannot disconnect nodes from this cell;
Updates geometric data and cell nodes automatically.

◆ getAdjElements() [1/2]

virtual ElementArray<Element> INMOST::Element::getAdjElements ( ElementType etype ) const

virtual

Retrieve unordered array of adjacent elements.

If you care about orderness of nodes for face you should you Face::getNodes() instead. If you want faster access you may use direct access to handles stored in memory through Mesh::HighConn for upper adjacencies and Mesh::LowConn for lower adjacencies.

Parameters

etype bitwise mask of element types

Returns: array of elements

Reimplemented in INMOST::ElementSet.

◆ getAdjElements() [2/2]

virtual ElementArray<Element> INMOST::Element::getAdjElements	(	ElementType	etype,
		MarkerType	mask,
		bool	invert_mask = `false`
	)		const

virtual

Retrieve unordered array of adjacent elements with marker.

Parameters

etype	bitwise mask of element types
mask	marker to be set
invert_mask	if true then those are selected on wich marker is not set

Returns: array of elements

Reimplemented in INMOST::ElementSet.

◆ getCells()

virtual ElementArray<Cell> INMOST::Element::getCells ( ) const

virtual

Return all the cells of the element.

For a node returns unordered set of cells.

For an edge returns unordered set of cells.

For a face returns a pair of cells. In the case Face::CheckNormalOrientation returns true then the normal points from the first cell to the second and in opposite direction otherwise.

For a cell returns itself.

Returns: array of elements

See also: Face::FaceOrientedOutside

Reimplemented in INMOST::ElementSet, INMOST::Face, INMOST::Edge, and INMOST::Node.

◆ getEdges()

virtual ElementArray<Edge> INMOST::Element::getEdges ( ) const

virtual

Retrieve all the edges of the element.

For a node returns unordered set of edges.

For an edge returns itself.

For a face returns ordered set of edges.

For a cell returns unordered set of edges.

Returns: array of elements

Reimplemented in INMOST::ElementSet, INMOST::Cell, INMOST::Face, and INMOST::Node.

◆ getFaces()

virtual ElementArray<Face> INMOST::Element::getFaces ( ) const

virtual

Retrieve all the faces of the element.

For a node returns unordered set of faces.

For an edge returns unordered set of faces.

For a face returns itself.

For a cell return ordered set of faces. The order of faces in the cell is preserved from the first construction.

Returns: array of elements

Reimplemented in INMOST::ElementSet, INMOST::Cell, INMOST::Edge, and INMOST::Node.

◆ getNodes()

virtual ElementArray<Node> INMOST::Element::getNodes ( ) const

virtual

Retrieve all the nodes of the element.

For a node returns itself.

For an edge returns ordered pair of nodes. The order of nodes in the edge is preserved from the first construction.

For a face returns ordered set of nodes. In the case Face::CheckNormalOrientation returns true the order of nodes will follow right hand side rule with respect to normal vector, otherwise it follows left hand side rule with respect to normal vector.

For a cell returns the same order that was provided through suggest_nodes_order in Mesh::CreateCell. In the case suggest_nodes_order was not provided, the order of nodes follows VTK format for known types of elements such as Element::Tet, Element::Prism, Element::Hex, Element::Pyramid. For a general polyhedron the order is unspecified.

Returns: array of elements

See also: Face::CheckNormalOrientation; Face::FaceOrientedOutside

Reimplemented in INMOST::ElementSet, INMOST::Cell, INMOST::Face, and INMOST::Edge.

◆ Hide()

bool INMOST::Element::Hide ( ) const

If the function returns true then element was hidden, works only inside BeginModification and EndModification, on EndModification all Hidden elements are deleted.

Todo:: Probably have to check normal orientation after hiding a back cell for a face.

◆ nbAdjElements() [1/2]

virtual enumerator INMOST::Element::nbAdjElements ( ElementType etype ) const

virtual

Retrieve number of adjacent elements.

For etype you can either pass one type as CELL, or several types as bitwise mask: NODE | CELL.

Parameters

etype bitwise mask of element types

Returns: number of adjacent elements.

Reimplemented in INMOST::ElementSet.

◆ nbAdjElements() [2/2]

virtual enumerator INMOST::Element::nbAdjElements	(	ElementType	etype,
		MarkerType	mask,
		bool	invert_mask = `false`
	)		const

virtual

Retrieve number of adjacent elements with marker.

As etype you can either pass one type as CELL, or several types as bitwise mask: NODE | CELL

Parameters

etype	bitwise mask of element types
mask	marker to be set
invert_mask	if true then those are selected on wich marker is not set

Returns: number of adjacent elements.

Reimplemented in INMOST::ElementSet.

◆ SendTo()

void INMOST::Element::SendTo ( std::set< Storage::integer > & procs ) const

Update geometric data for element, calls RecomputeGeometricData from Mesh.

Marks element to be sent to remote processors that current processor don't belong to. Call Mesh::ExchangeMarked to perform the exchange.

◆ Show()

bool INMOST::Element::Show ( ) const

If the function returns true then element was recovered from hidden state, works only inside BeginModification and EndModification.

Todo:: Probably have to check normal orientation after recovering a back cell for a face.

The documentation for this class was generated from the following file:

inmost_mesh.h

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ Boundary()

◆ Connect()

◆ Delete()

◆ Disconnect()

◆ getAdjElements() [1/2]

◆ getAdjElements() [2/2]

◆ getCells()

◆ getEdges()

◆ getFaces()

◆ getNodes()

◆ Hide()

◆ nbAdjElements() [1/2]

◆ nbAdjElements() [2/2]

◆ SendTo()

◆ Show()
