This class is used to organize unknowns in abstract way, it should be registered with and managed by class Automatizator. More...

#include <inmost_autodiff.h>

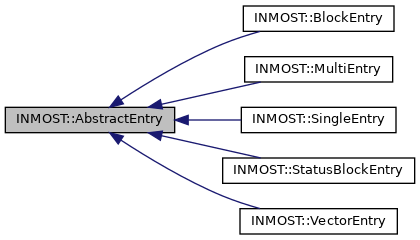

Inheritance diagram for INMOST::AbstractEntry:

[legend]

Public Member Functions
	AbstractEntry (ElementType etype=NONE, MarkerType mask=0, bool inverse=false)

MarkerType	GetMask () const
	Retrieve mask of the block.

bool	GetMaskInverse () const
	Retrieve if the mask is inverted.

void	SetMask (MarkerType _mask, bool inverse=false)
	Set mask for the block.

ElementType	GetElementType () const
	Retrieve element type of the block.

void	SetElementType (ElementType _etype)
	Set element type for the block.

TagInteger	GetOffsetTag () const
	Retrieve tag that stores enumeration offset on each element.

void	SetOffsetTag (TagInteger tag)
	Retrieve tag that stores enumeration offset on each element.

bool	isValid (const Storage &e) const
	Check that the block is valid on given element.

virtual INMOST_DATA_REAL_TYPE	Value (const Storage &e, INMOST_DATA_ENUM_TYPE pos) const =0
	Return value in vector of unknowns of the block at certain position. More...

virtual INMOST_DATA_REAL_TYPE &	Value (const Storage &e, INMOST_DATA_ENUM_TYPE pos)=0
	Return value in vector of unknowns of the block at certain position. More...

virtual INMOST_DATA_ENUM_TYPE	Index (const Storage &e, INMOST_DATA_ENUM_TYPE pos) const =0
	Return index in vector of indices of the block at certain position. More...

virtual unknown	Unknown (const Storage &e, INMOST_DATA_ENUM_TYPE pos) const =0
	Return unknown in vector of variables of the block at certain position. More...

virtual Matrix< value_reference >	Value (const Storage &e)=0
	Return vector filled with references to values of unknowns of the block.

virtual rMatrix	Value (const Storage &e) const =0
	Return vector filled with values of unknowns of the block.

virtual iMatrix	Index (const Storage &e) const =0
	Return vector filled with indices of unknowns of the block.

virtual uMatrix	Unknown (const Storage &e) const =0
	Return vector filled with unknowns of the block with their derivatives.

template<typename T >
Matrix< typename Demote< T >::type >	Access (const Storage &e) const
	Return vector filled with either values or indices or unknowns of the block, depending on the template parameter.

template<typename T >
Demote< T >::type	Access (const Storage &e, INMOST_DATA_ENUM_TYPE pos) const
	Return either value or index or unknown at specified position of the block, depending on the template parameter. More...

virtual uMatrix	operator[] (const Storage &e) const =0
	Return vector filled with unknowns of the block with their derivatives.

virtual INMOST_DATA_ENUM_TYPE	MatrixSize (const Storage &e) const =0
	The intended size of the matrix for this entry.

virtual INMOST_DATA_ENUM_TYPE	Size () const =0
	Number of tags in block.

virtual INMOST_DATA_ENUM_TYPE	Size (const Storage &e) const =0
	Total number of entries that this block expands to on given element, count variable-sized entries. More...

virtual INMOST_DATA_ENUM_TYPE	GetValueComp (INMOST_DATA_ENUM_TYPE unk) const =0
	Retrieve component of the tag related to unknown.

virtual TagRealArray	GetValueTag (INMOST_DATA_ENUM_TYPE unk) const =0
	Retrieve tag related to unknown value.

virtual Mesh *	GetMeshLink () const =0
	Retrieve mesh pointer.

virtual AbstractEntry *	Copy () const =0
	Make a copy of the object.

INMOST_DATA_ENUM_TYPE	GetRegistrationIndex () const
	Retrieve a registration index.

void	SynchronizeData ()
	Update variables contained in block on ghost elements of the grid. More...

virtual	~AbstractEntry ()
	Destructor.

Friends
class	Automatizator

class	Model

Detailed Description

This class is used to organize unknowns in abstract way, it should be registered with and managed by class Automatizator.

Todo:

Is there a need for layout on how matrices are returned?
Is there a need for layout on how unknowns and equations are arranged?
Function for update of variables.
Function for synchronization of variables.

Definition at line 29 of file inmost_autodiff.h.

Member Function Documentation

◆ Access()

template<typename T >

Demote<T>::type INMOST::AbstractEntry::Access	(	const Storage &	e,
		INMOST_DATA_ENUM_TYPE	pos
	)		const

Return either value or index or unknown at specified position of the block, depending on the template parameter.

Parameters

pos	Position in the block, should be no larger then MatrixSize.

◆ Index()

virtual INMOST_DATA_ENUM_TYPE INMOST::AbstractEntry::Index	(	const Storage &	e,
		INMOST_DATA_ENUM_TYPE	pos
	)		const

pure virtual

Return index in vector of indices of the block at certain position.

The index may be ENUMUNDEF if the unknown is inactive.

Parameters

pos	Position for which to extract the index, should be no larger then MatrixSize.

Implemented in INMOST::MultiEntry, INMOST::StatusBlockEntry, INMOST::VectorEntry, INMOST::SingleEntry, and INMOST::BlockEntry.

◆ Size()

virtual INMOST_DATA_ENUM_TYPE INMOST::AbstractEntry::Size ( const Storage & e ) const

pure virtual

Total number of entries that this block expands to on given element, count variable-sized entries.

This is an important function since it determines offset of each block when enumerated by Automatizator::EnumerateEntries. See also MatrixSize.

Implemented in INMOST::MultiEntry, INMOST::StatusBlockEntry, INMOST::VectorEntry, INMOST::SingleEntry, and INMOST::BlockEntry.

◆ SynchronizeData()

void INMOST::AbstractEntry::SynchronizeData ( )

Update variables contained in block on ghost elements of the grid.

For synchronization of data in all blocks see Automatizator::SynchronizeData.

◆ Unknown()

virtual unknown INMOST::AbstractEntry::Unknown	(	const Storage &	e,
		INMOST_DATA_ENUM_TYPE	pos
	)		const

pure virtual

Return unknown in vector of variables of the block at certain position.

Parameters

pos	Position for which to extract the unknown, should be no larger then MatrixSize.

Implemented in INMOST::MultiEntry, INMOST::StatusBlockEntry, INMOST::VectorEntry, INMOST::SingleEntry, and INMOST::BlockEntry.

◆ Value() [1/2]

virtual INMOST_DATA_REAL_TYPE INMOST::AbstractEntry::Value	(	const Storage &	e,
		INMOST_DATA_ENUM_TYPE	pos
	)		const

pure virtual

Return value in vector of unknowns of the block at certain position.

Parameters

pos	Position for which to extract the value, should be no larger then MatrixSize.

Implemented in INMOST::MultiEntry, INMOST::StatusBlockEntry, INMOST::VectorEntry, INMOST::SingleEntry, and INMOST::BlockEntry.

◆ Value() [2/2]

virtual INMOST_DATA_REAL_TYPE& INMOST::AbstractEntry::Value	(	const Storage &	e,
		INMOST_DATA_ENUM_TYPE	pos
	)

pure virtual

Return value in vector of unknowns of the block at certain position.

Parameters

pos	Position for which to extract the value, should be no larger then MatrixSize.

Implemented in INMOST::MultiEntry, INMOST::StatusBlockEntry, INMOST::VectorEntry, INMOST::SingleEntry, and INMOST::BlockEntry.

The documentation for this class was generated from the following file:

inmost_autodiff.h
